Propshaft for Overdrive Gearbox

Recently I have fitted an 3 rail, D-Type overdrive gearbox to my Herald. As the Herald never had this as a factory option, propshafts of the correct length are not that plentiful. This is not too difficult to overcome, though it may make a big dent in you wallet if you buy one from one of the Triumph traders, or maybe a little cheaper if you have your existing propshaft shortened professionally.

Before I considered doing the overdrive conversion I had bought a propshaft off eBay, it was advertised as a being suitable for a Herald and having a sliding joint, which I consider to be preferable to the solid or strap type that are more common. However when it arrived it was far too short, so short in fact I couldn't find out what it could have been used for.

The ideal propshaft length for a Herald with a 3 rail O/D gearbox is 46.5", the closest one in the small chassis family is from a Non-O/D Vitesse at 47". Many people use these without modification, though some have to put a spacer on the engine mounts to move it forward to allow for it being slightly too long. I had picked up one of these propshafts cheaply so used it initially, but whilst it did fit I wasn't happy with how tight the whole thing was, even with the engine pushed forward, this also affected clearance between the fan and radiator, which were closer than I liked.

So I now had a selection of propshafts, two too long and one too short. Being too mean to buy the correct one or send one off to be shortened, I decided to make one of the correct length myself from the original solid Herald item and the very short one with a sliding joint.

The two donor propshafts
First thing was to remove sliding joint from the propshaft that was too short, this is easily done using an ultra-thin cutting disc on a grinder. Once this was off I offered it up to the propshaft which was too long to see how much I needed cut off, then again with the grinder I cut off the excess.

Sliding joint and cut down propshaft
Next I took the sliding joint to a local retired engineer who was able to machine down the rough cut I had made to a perfectly flat face. Unfortunately he didn't have any machinery big enough to level off the mating face of the propshaft, so instead I levelled off the rough cut on a belt sander, then using a file and a set square I carefully filed and measured, filed and measured until I was happy it was square.

Measuring the squareness of the propshaft
Then I drifted on the sliding joint on to the propshaft, it was a tight fit, ensuring it was a nice flush fit all round, then double checked the length to ensure it was what I wanted. There was 1.5" of movement in the sliding joint and the 46.5" fell right in the centre of the travel, just as I wanted.

Sliding joint drifted on to the propshaft
Once I was happy the fit and length were good, I put 4 tacks of weld to hold it in place. Before fully welding I used a cutting disc to create a V-shape at the join, this allows the weld to get deeper in to the joint so adds strength.

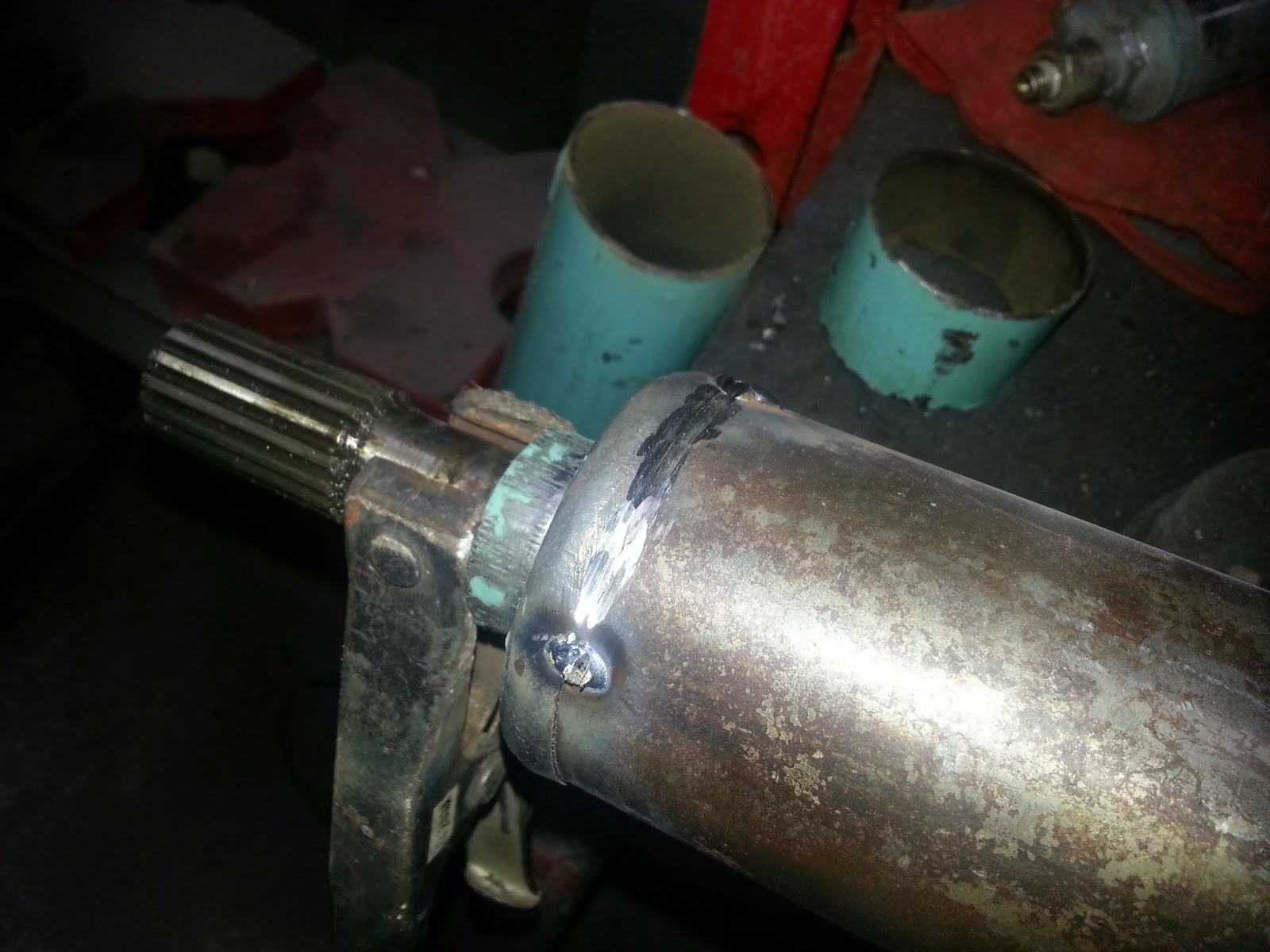

V-Shape where sliding joint meets the propshaft
Then using a nice hot weld and slow wire speed to ensure it pulls right in, I fully welded around the join.

Joint fully welded
Then using a soft disc I cleaned up the weld.

Weld on the joint cleaned up
Finally I gave it coat of paint before fitting.

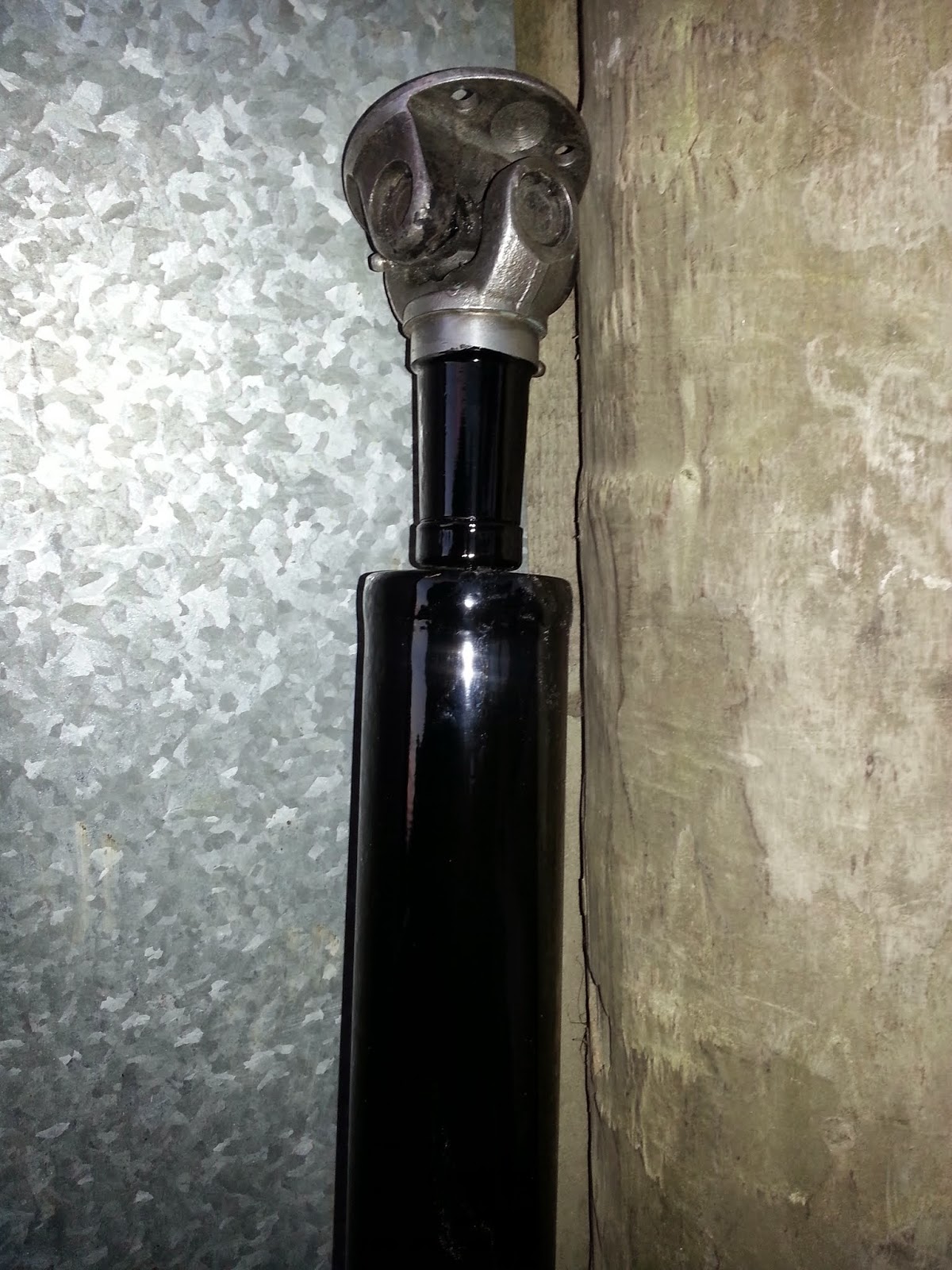

Propshaft painted and ready to fit
